Admin UI
Use the built-in Admin UI to inspect your Kubernetes agentgateway proxy configuration.
Use the agentgateway Admin UI to inspect your Kubernetes proxy configuration.
About
The agentgateway Admin UI is a built-in web interface that runs on port 15000 of the agentgateway-proxy pod. In Kubernetes mode, the UI is read-only. It reflects the configuration that the agentgateway controller pushes to the proxy over xDS, the protocol that the control plane uses to deliver configuration to the proxy.
The Admin UI is useful for debugging and verifying the configuration that the proxy received from the controller, such as confirming that a Gateway, HTTPRoute, AgentgatewayBackend, or AgentgatewayPolicy resource took effect.
Access the Admin UI
The Admin UI is not exposed as a Kubernetes Service. To access it, use kubectl port-forward to forward the pod’s port to your local machine.
Forward port 15000 from the
agentgateway-proxydeployment to your local machine.kubectl port-forward deployment/agentgateway-proxy -n agentgateway-system 15000Example output:
Forwarding from 127.0.0.1:15000 -> 15000 Forwarding from [::1]:15000 -> 15000While the port-forward is running, open http://localhost:15000/ui/ in your browser.

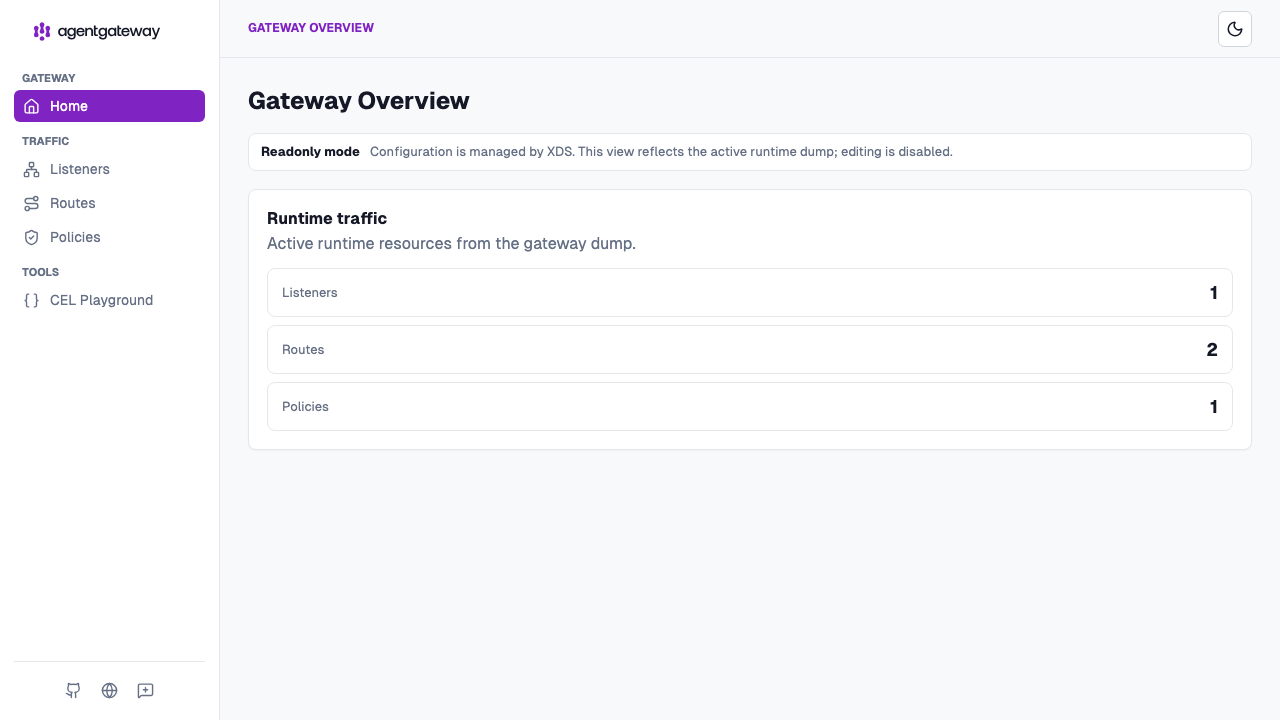

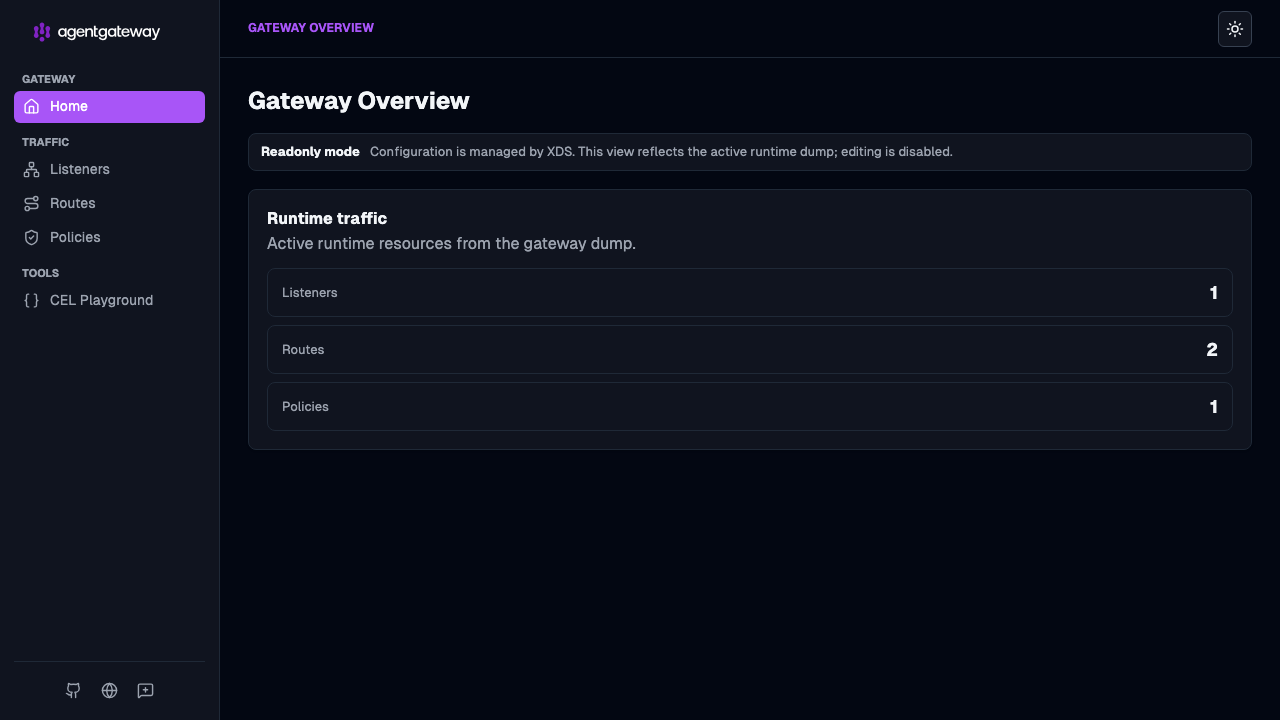

The Gateway Overview opens in read-only mode and summarizes the resources that the proxy currently serves, such as the number of listeners, routes, and policies.
kubectl port-forward command. Run it in a dedicated terminal tab or in the background if you need persistent access.Explore the read-only views
Because configuration is managed by xDS, every page shows a read-only mode banner and editing is disabled. The views reflect the configuration that the proxy currently runs, so use them to verify that the proxy received the configuration that you expect. The navigation menu groups the views into Gateway, Traffic, and Tools.
Listeners

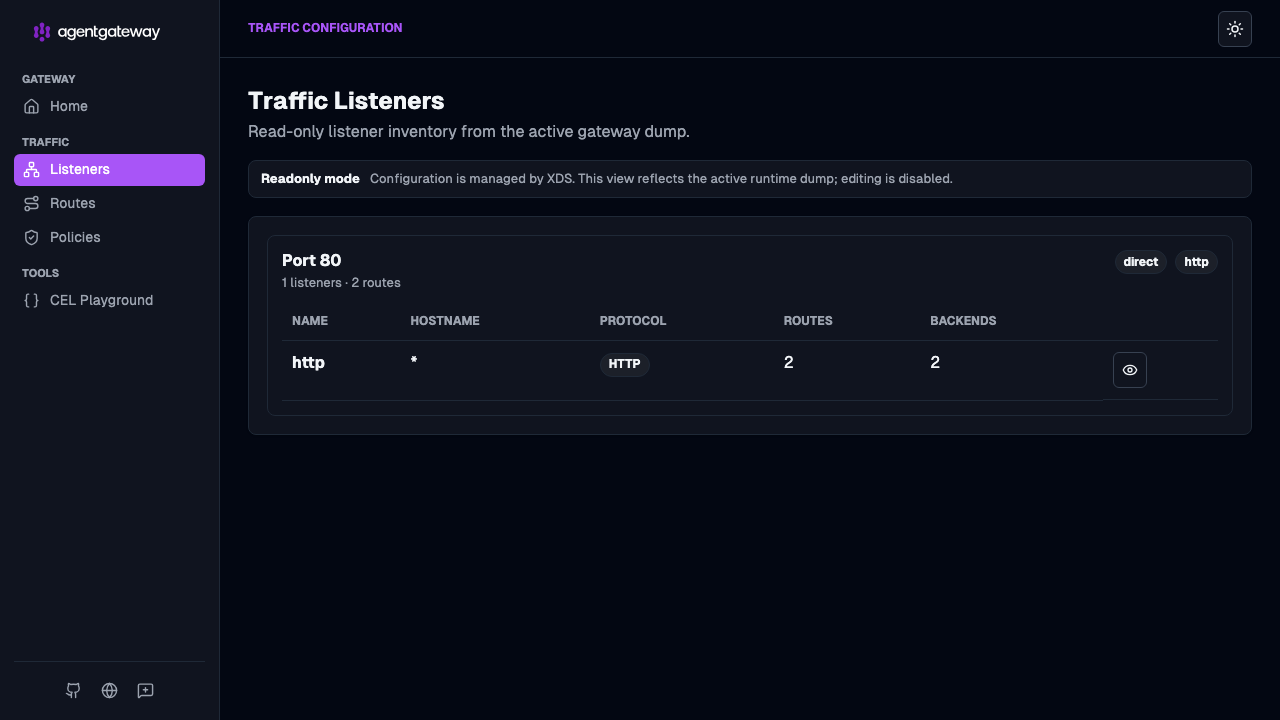

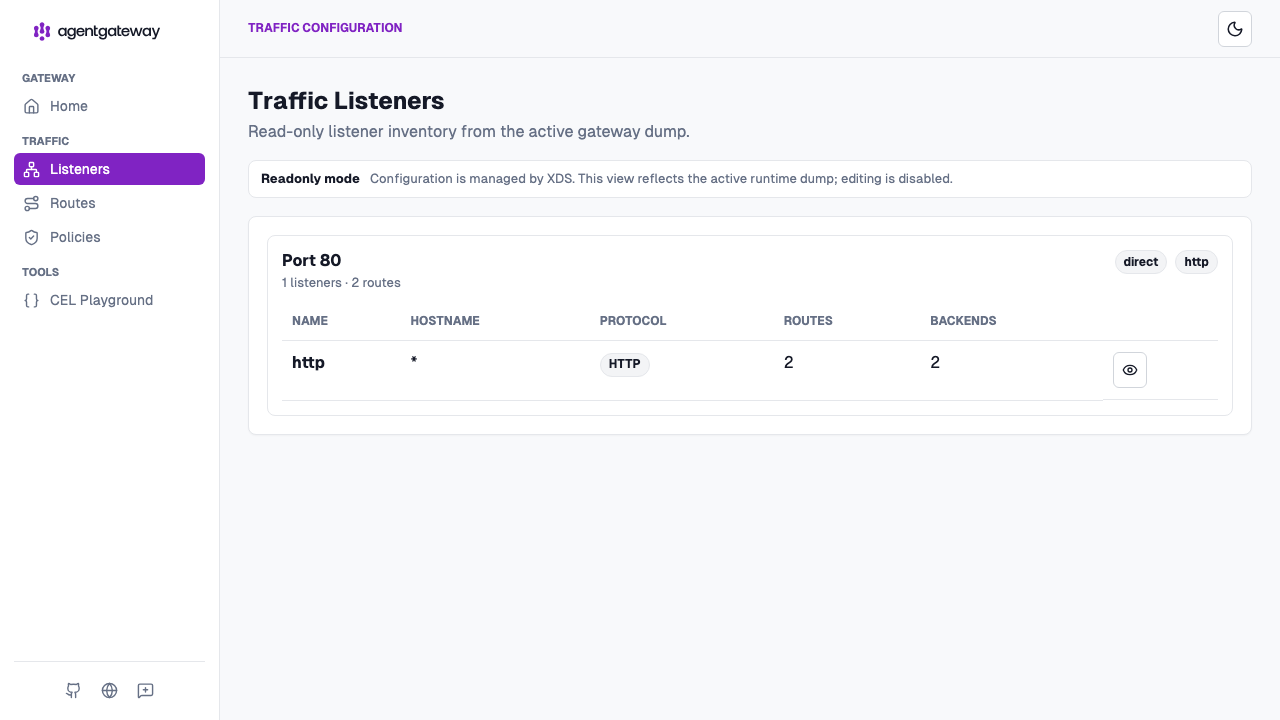

The Listeners page lists the ports that the proxy binds and the routes that are attached to each listener. Use it to confirm the proxy’s port bindings and how routes map to each listener.
Routes

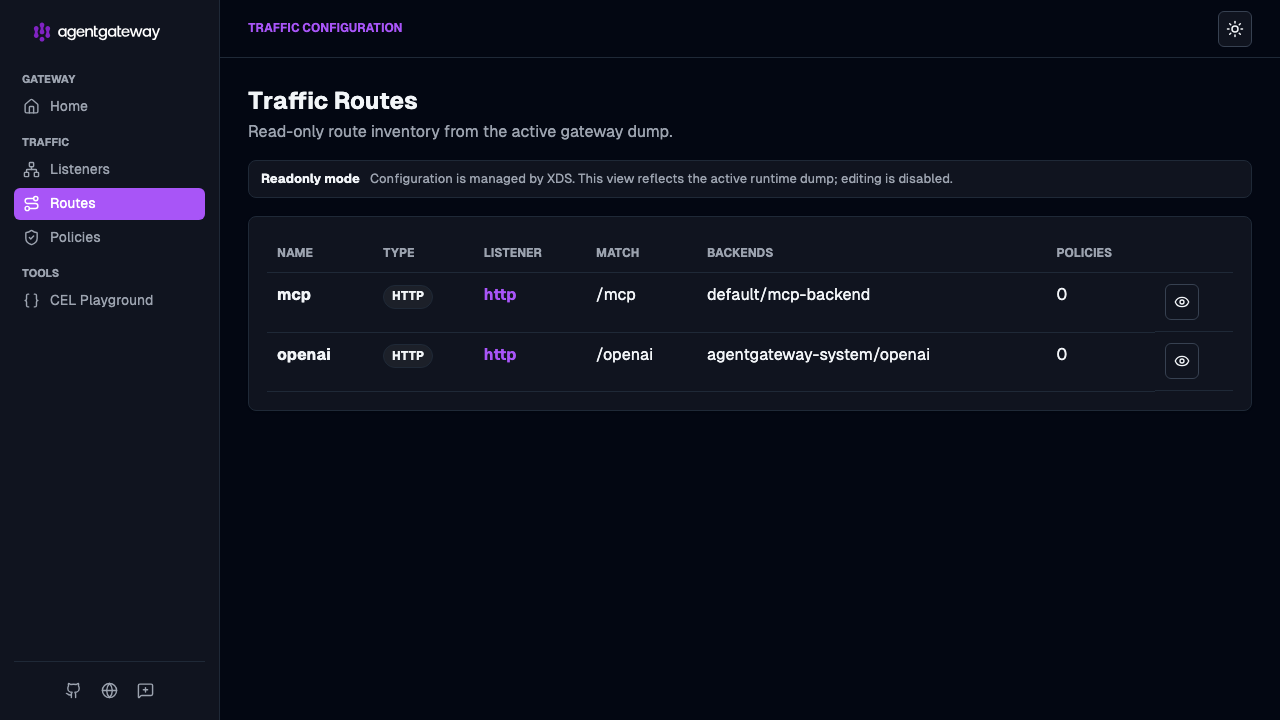

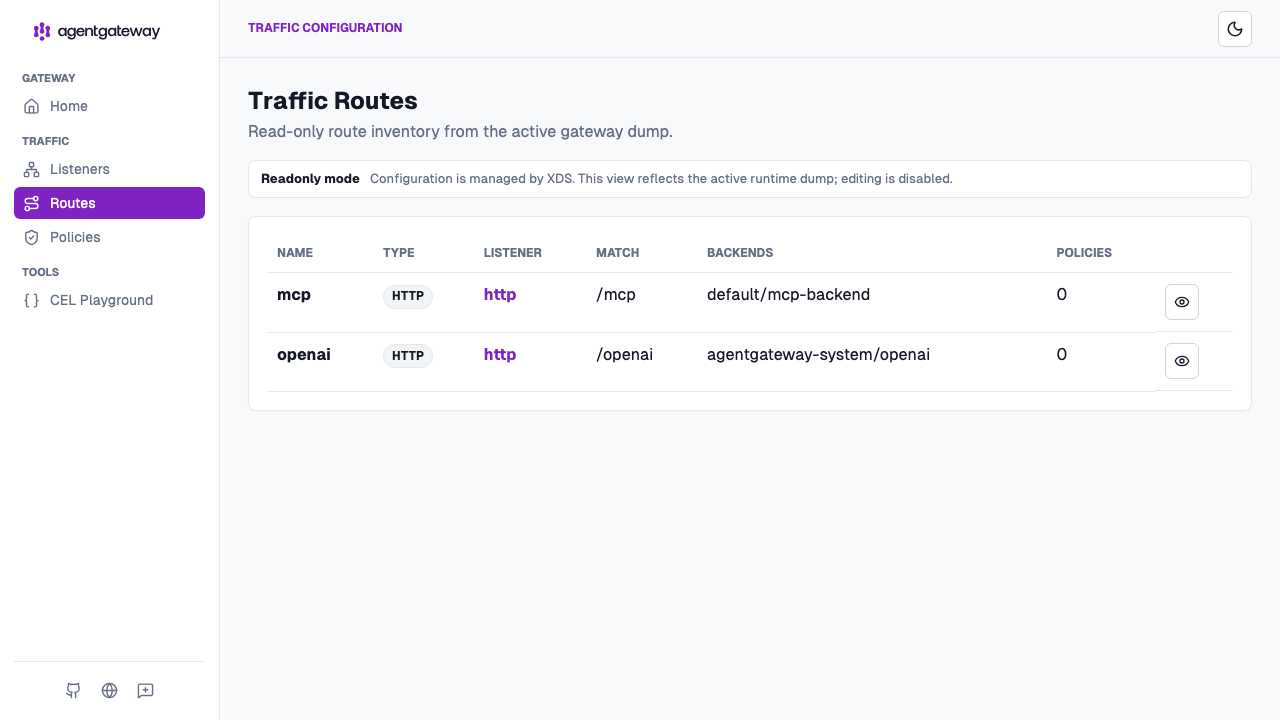

The Routes page is an inventory of the routes that the proxy currently runs. Each row shows the route name, type, listener, path match, backends, and the number of attached policies. To inspect a single route in more detail, click the view (eye) icon in its row.
Policies

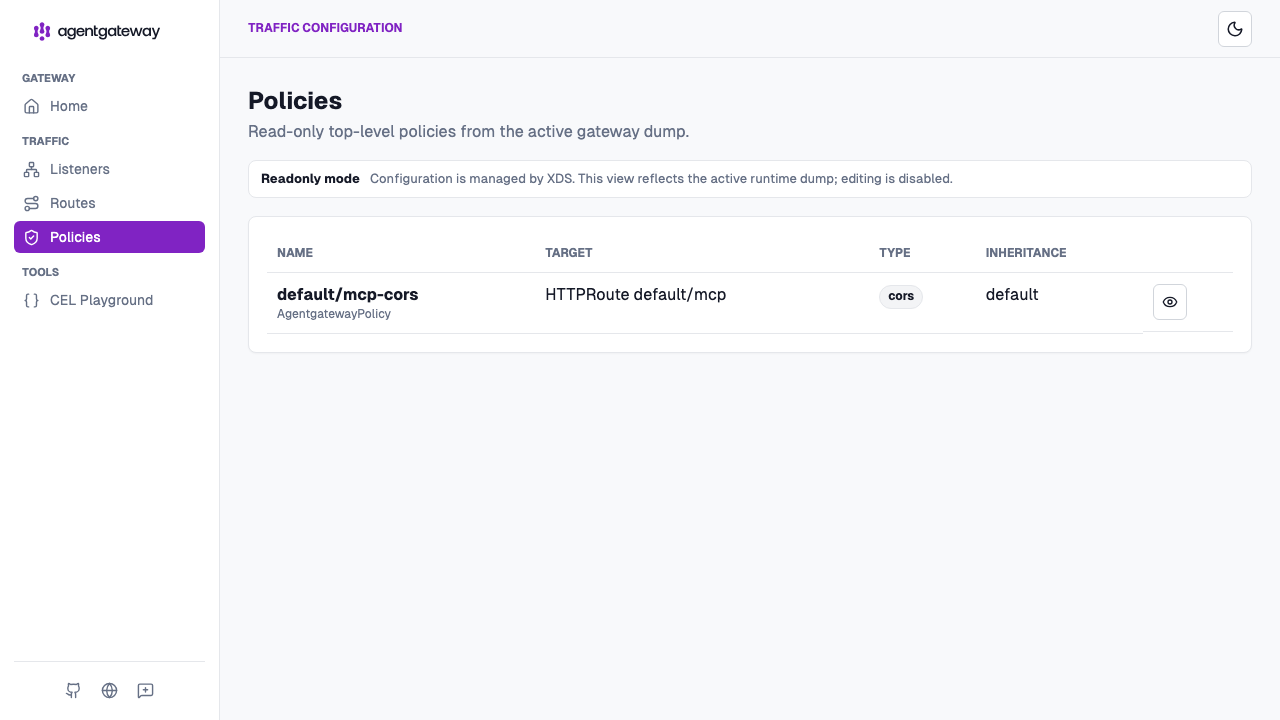

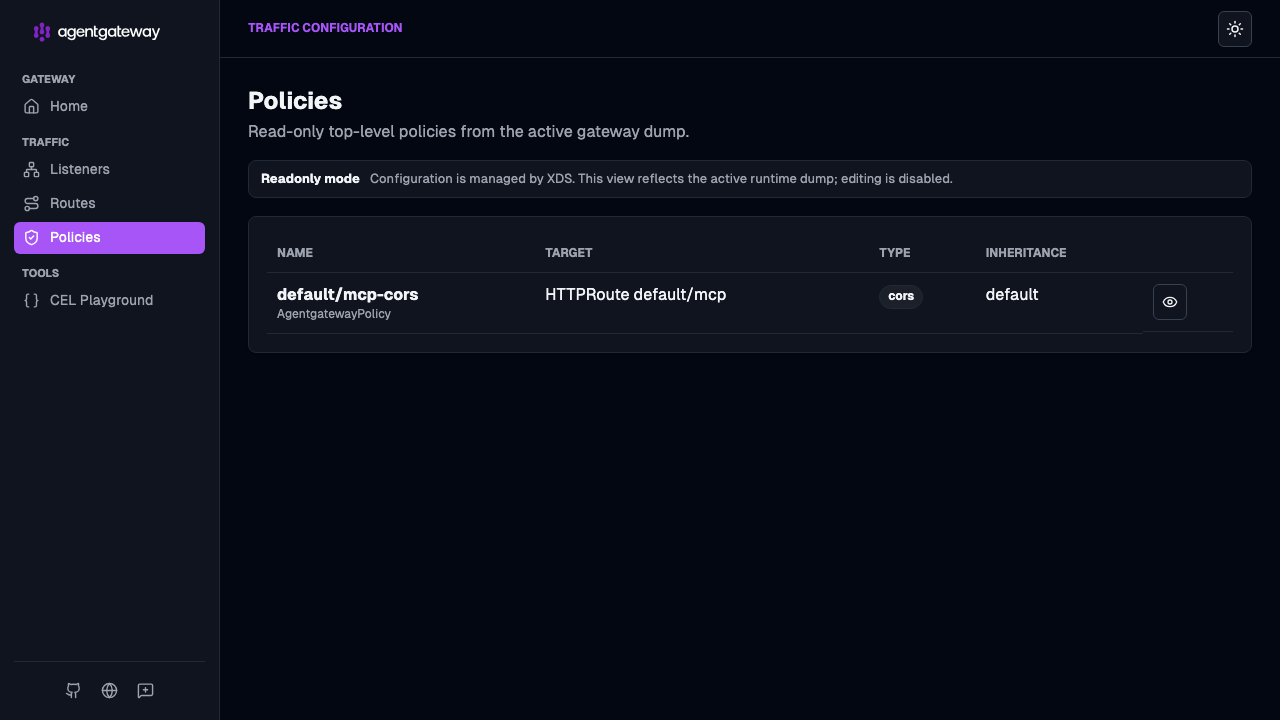

The Policies page lists the policies that the proxy currently runs, including the resource that each policy targets, the policy type, and how the policy is inherited.
CEL Playground

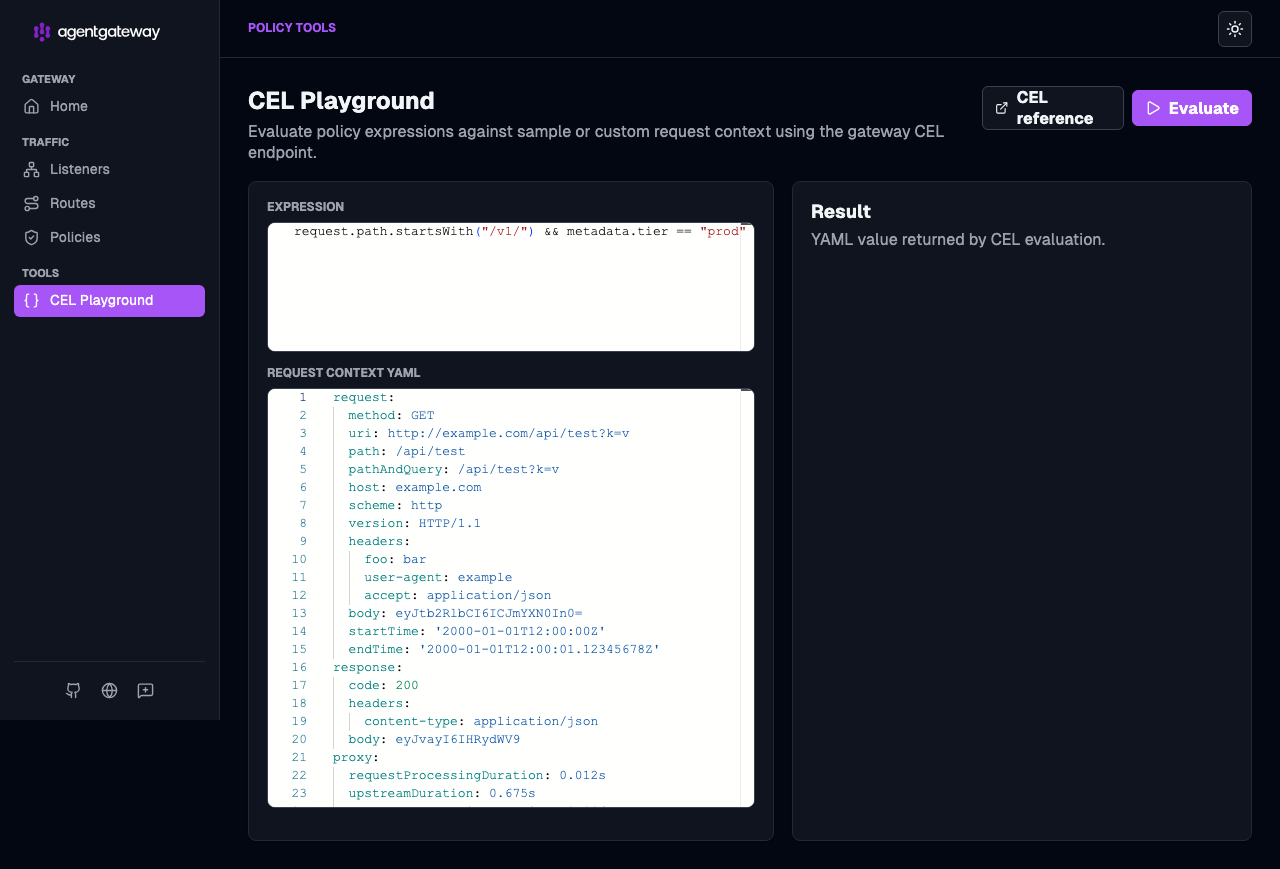

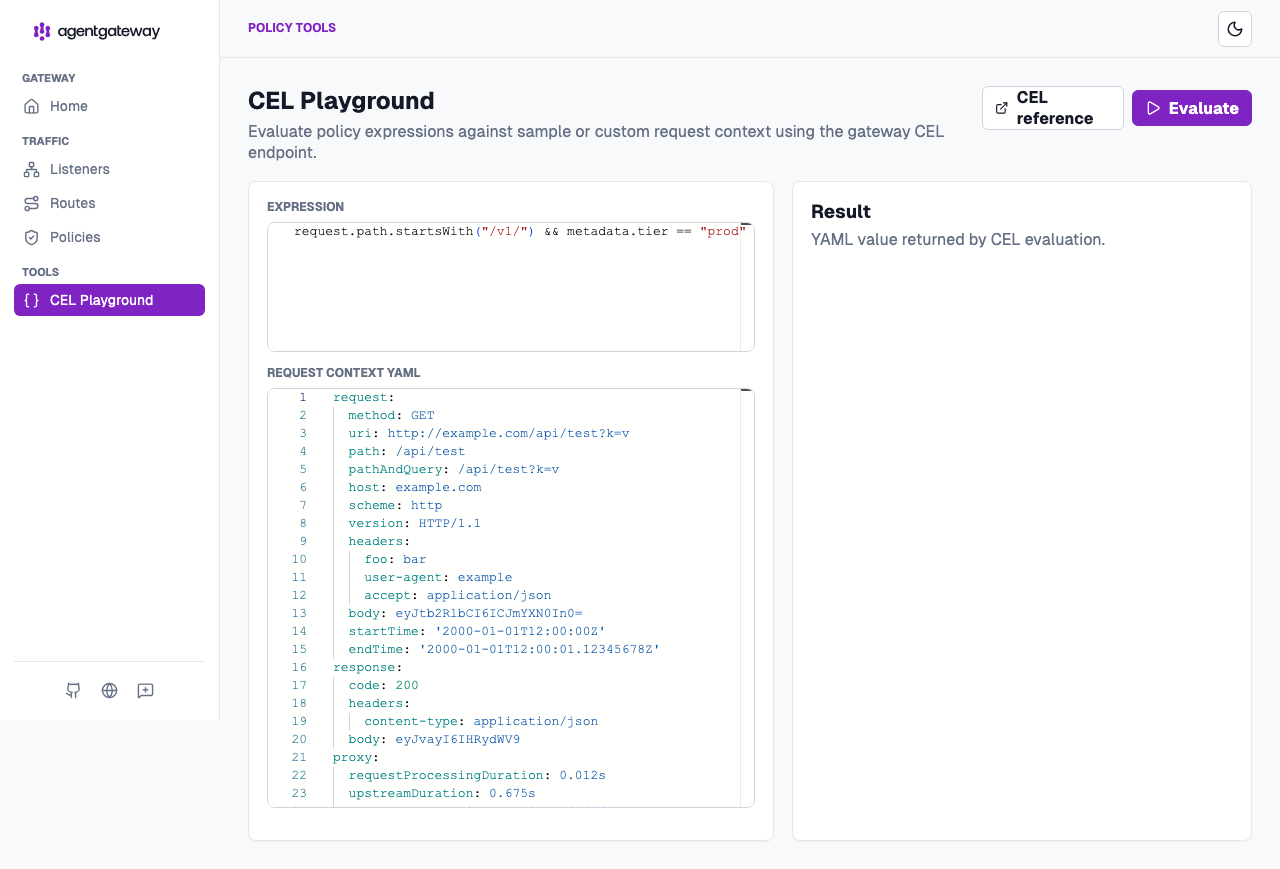

The CEL Playground, under Tools, lets you evaluate Common Expression Language (CEL) expressions against sample input. It is the only interactive tool available in Kubernetes mode, and it does not modify any configuration. For more information about where agentgateway uses CEL, see the CEL expressions reference.
